Product Summary
The B72590T40M60 is a ceramic transient voltage suppressor. The applications of the B72590T40M60 include: (1)ESD protection in mobile phones, cordless phones and accessories; (2)ESD protection in data bus applications; (3)ESD protection in control electronics, detectors and sensors, touch screens, plug-in cards, remote controls.
Parametrics
B72590T40M60 absolute maximum ratings: (1)VRMS,max: 4V; (2)VDC,max: 5.5V; (3)Isurge,max(8/20 μs): 20A; (4)Wmax(2 ms): 7.5mJ; (5)Pdiss,max: 3mW; (6)Top,max: +85℃.
Features
B72590T40M60 features: (1)ESD acc. to IEC 61000-4-2 level 4(8 kV contact, 15 kV air discharge); (2)Surge current up to 1200 A; (3)Bidirectional protection; (4)No derating up to 125℃ (for case sizes ≥ 0603); (5)Fast response (< 0.5 ns); (6)RoHS-compatible; (7)CT version suitable for lead-free soldering; (8)PSpice simulation models available.

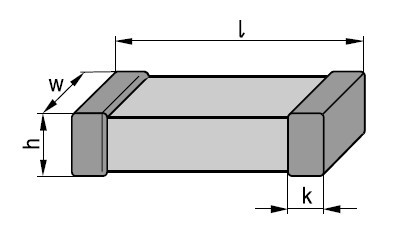

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B72590T40M60 |
EPCOS |
Varistors CT0402M4G |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
B72500D0050A060 |
EPCOS |
TVS Diodes - Transient Voltage Suppressors Varistor CDS3C05GTA |
Data Sheet |
|
|
||||||||||||||
|
B72500D0050H160 |
EPCOS |
TVS Diodes - Transient Voltage Suppressors Varistor CDS3C05HDMI1 |
Data Sheet |
|
|
||||||||||||||
 |
B72500D0160H060 |
EPCOS Inc (VA) |
CERADIODE 16V HISPEED 0603 SMD |
Data Sheet |
|
|
||||||||||||||
|
B72500D160H60 |
EPCOS |
TVS Diodes - Transient Voltage Suppressors 0603 16VDC 3pF CeraDiode CDS3C16GTH |
Data Sheet |
|
|
||||||||||||||
|
B72500D200A60V7 |
EPCOS |
TVS Diodes - Transient Voltage Suppressors CeraDiode CDS3C20GTA |
Data Sheet |
|
|
||||||||||||||
 |
B72500D200A60V9 |
EPCOS |
TVS Diodes - Transient Voltage Suppressors CeraDiode CDS3C20GTA |
Data Sheet |
|
|
||||||||||||||
