Product Summary
The EEC-S0HD334V is an electric double layer capacitor. Applications include: memory back-up for video and audio equipment, cameras, telephones, printers, data ter mi nals, rice cookers, intelligent remote controls.
Parametrics
EEC-S0HD334V specifications: (1)Category Temp. Range: –25 ℃ to +70 ℃; (2)Maximum Operating Voltage: 5.5 V.DC; (3)Nominal Cap.Range: 0.022 F to 0.33 F; (4)Characteristics at Low Temperature capacitance change: ±30 % of initial measured value at +20 ℃ (at –25 ℃); Internal resistance ≤5 times of initial measured value at +20 ℃ (at –25 ℃); (5)Shelf Life: After 1000 hours storage at +70℃ without load, the capacitor shall meet the specified limits for Endurance.
Features
EEC-S0HD334V features: (1)Endurance: 70 ℃ 1000 h; (2)RoHS directive compliant.

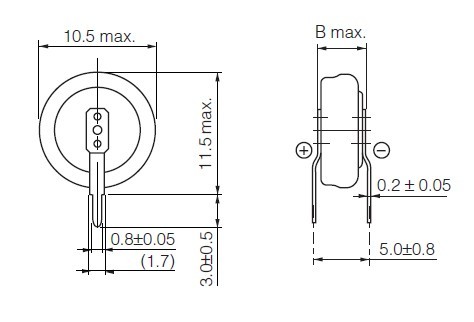

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EEC-S0HD334V |
Panasonic Electronic Components |
Supercapacitors / Ultracapacitors .33F 5.5V |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
EEC-A0EL105 |
Panasonic Electronic Components |
Supercapacitors / Ultracapacitors 1.0F 2.5volts AL TYPE GOLD RAD |
Data Sheet |
|
|
||||||||||||
|
EEC-A0EL106 |
Panasonic Electronic Components |
Supercapacitors / Ultracapacitors 10.0F 2.5volts AL TYPE GOLD RAD |
Data Sheet |
|
|
||||||||||||
 |
EEC-A0EL155 |
Panasonic - ECG |
CAP 1.5F 2.5V AL TYPE GOLD RAD |
Data Sheet |
Negotiable |
|
||||||||||||
|
EEC-A0EL224 |
Panasonic - ECG |
CAP .22F 2.5V AL TYPE GOLD RAD |
Data Sheet |
Negotiable |
|
||||||||||||
|
EEC-A0EL225 |
Panasonic - ECG |
CAP 2.2F 2.5V AL TYPE GOLD RAD |
Data Sheet |
Negotiable |
|
||||||||||||
|
EEC-A0EL334 |
Panasonic - ECG |
CAP .33F 2.5V AL TYPE GOLD RAD |
Data Sheet |
Negotiable |
|
||||||||||||
