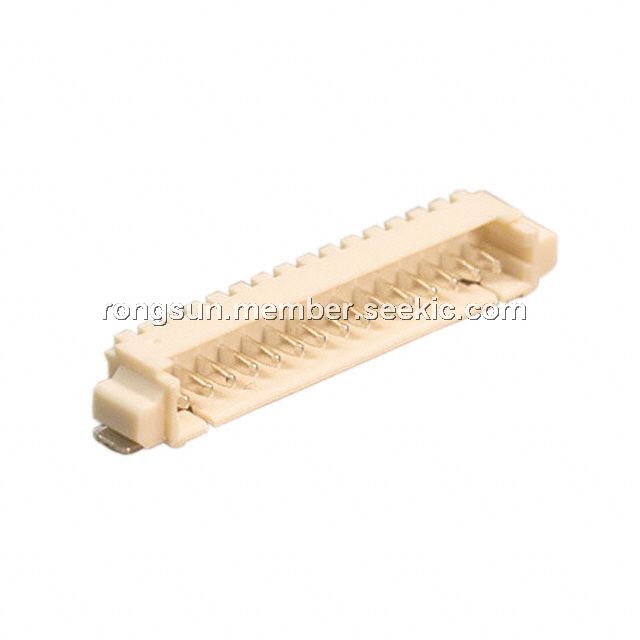

Product Summary
The FI-XB30SL-HF10 is a LCD interface connector compatible with high-speed differential transmission. It is drastically improved grounding which is directly related to EMI characteristics.
Parametrics
General specifications: (1)No. of contacts: 14, 20, 30 (all signal) D7 (only for differential transmission); (2)Applicable FPC: t0.14±0.03; (3)Applicable cable: AWG #30 to #40; (4)Operating temperature: -40℃ to +80℃; (5)Contact resistance: Less than 40mΩ; (6)Rated current: 1A per pin for both AC and DC; (7)Rated voltage: 200V per pin for both AC and DC; (8)Insulation resistance: Greater than 100MΩ; (9)Withstand voltage: AC500Vr.m.s. for 1 minute; (10)Pitch: 1mm.
Features
Features: (1)Compatible with high-speed differential transmission and high-level impedance matching (90 to 100Ω); (2)Drastically improved grounding which is directly related to EMI characteristics; (3)1.5mm connector height and 1mm height above the PCB thanks to bottom type structure; (4)1mm contact pitch with impedance matching; (5)Compatible with FPC and cable by common use of board header. Enables stable grounding to the PCB thanks to FPC relay used in other FI Series connectors.

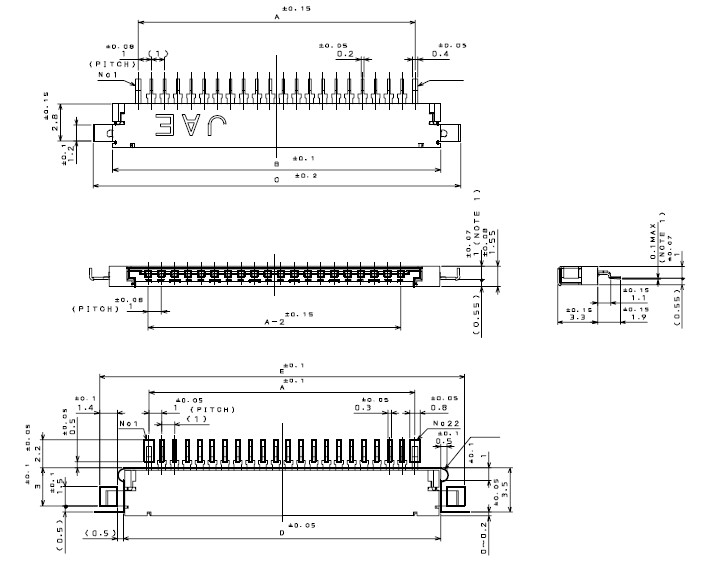

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

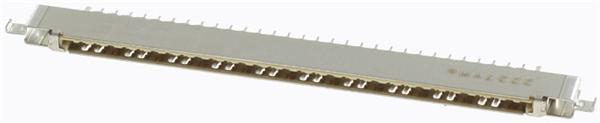

 FI-XB30SL-HF10 |
JAE Electronics |
FFC / FPC Connectors 1.0MM 30P RECEPT RT ANGLE w/ lock |
Data Sheet |
|
|
||||||||||||
 |

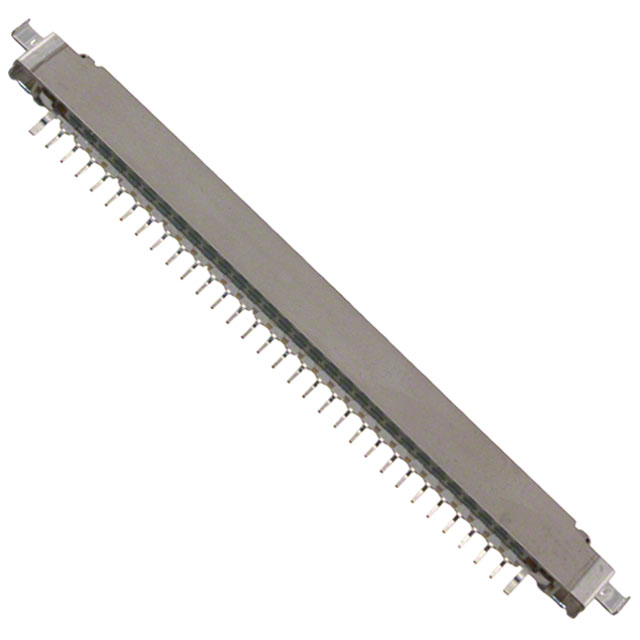

FI-XB30SL-HF10-R3000 |
JAE Electronics |
FFC / FPC Connectors 30P Rcpt Mid Mnt 1mm |
Data Sheet |
|
|
||||||||||||
