Product Summary
The LQW15AN15NG00D is a chip inductor (chip coil) for high frequency horizontal wire wound.
Parametrics
LQW15AN15NG00D specifications: (1)Inductance: 15±2%nH; (2)Test frequency: 100MHz; (3)Rated current: 460mA; (4)Max. of DC resistance: 0.16ohm; (5)Q(min): 30; (6)Test frequency: 250MHZ; (7)Self resonance frequency(min.): 5.0GHz.
Features
LQW15AN15NG00D features: (1)INDUCTOR, 0402, 15NH ; (2)Inductance: 15nH ; (3)Inductance Tolerance: ±2% ; (4)DC Resistance Max: 0.16ohm ; (5)DC Current Rating: 460mA ; (6)Series: LQW15; (7)Core Material: Alumina; (8)Inductor Case Style: 0402; (9)No. of Pins: 2; (10)SVHC: No SVHC (15-Dec-2010); (11)External Depth: 0.6mm; (12)External Length / Height: 0.5mm; (13)External Width: 1mm; (14)Inductor Type: Chip Coils; (15)Operating Temperature Max: 125℃; (16)Operating Temperature Min: -55℃; (17)Q Factor @ Frequency: 30@250MHz; (18)Resistance: 0.16ohm; (19)Resonant Frequency: 5GHz; (20)Test Frequency: 100MHz.

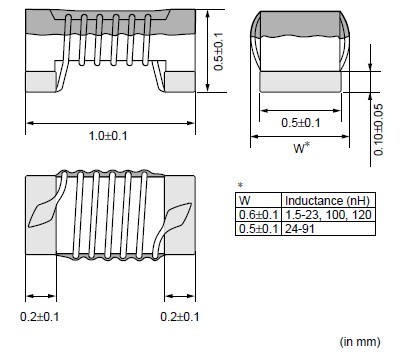

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQW15AN15NG00D |
Murata |
RF Inductors 15 NH 2% |
Data Sheet |
|
|
||||||||||||
