Product Summary

The SR0603100MSB is a SMD power inductor.

Parametrics

SR0603100MSB specifications: (1)Temp. rise：40℃max.; (2)Rated current：Base on temp. rise & △L/LOA=10%max; (3)Storage temp.：-40℃~+125℃; (4)Operating temp.：-40℃~+105℃; (5)Resistance to solder heat：260℃.10 secs.

Diagrams

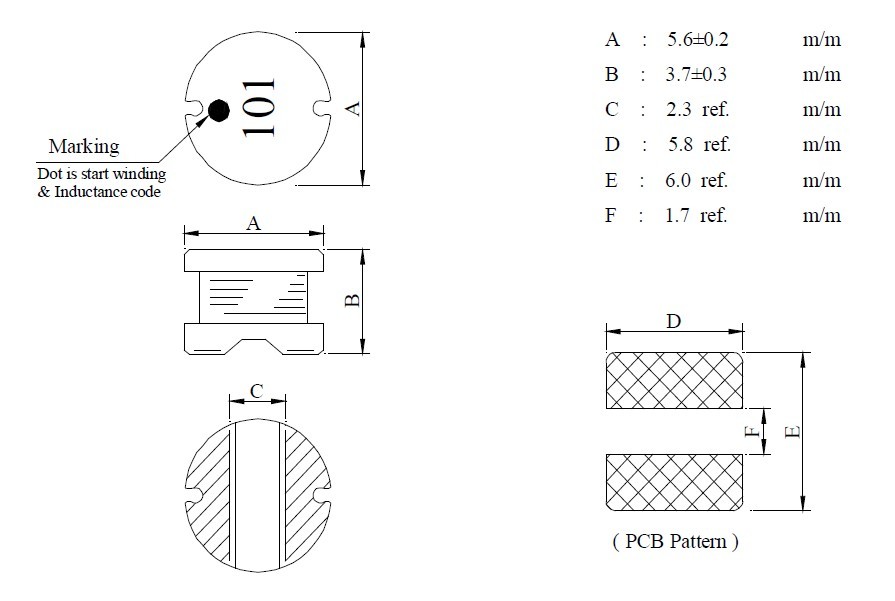

SR0603100MSB dimensions
