Product Summary
The 3314J-1-105E is a 3314 - 4 mm Square Trimming Potentiometer.
Parametrics
3314J-1-105E electrical characteristics: (1)Standard Resistance Range: 10 ohms to 2 megohms; (2)Resistance Tolerance: ±20 % std (tighter tolerance available); (3)End Resistance: 1 % or 2 ohms max. (whichever is greater); (4)Contact Resistance Variation: 3 % or 3 ohms; (5)Resolution: Infinite; (6)Insulation Resistance: 500 vdc. 1,00 megohms min.; (7)Dielectric Strength Sea Level: 500 vac (1minute); (8)Adjustment angle: 210°nom.
Features
3314J-1-105E features: (1)Surface Mount / Single Turn / Cermet Industrial / Sealed; (2)Compatible with surface mount manufacturing processes; (3)Compatible with popular vacuum pick-and-place equipment; (4)J-hook, gull-wing and pinned configurations; (5)Side adjust available; (6)Meets EIA/EIAJ/IPC/VECI SMD standard trimmer designs; (7)RoHS compliant.

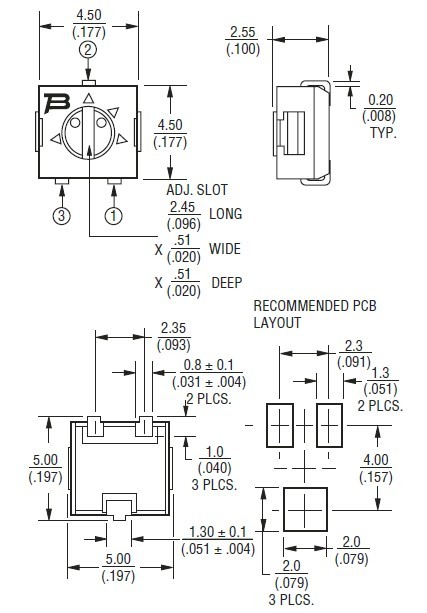

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3314J-1-105E |
Bourns |
Trimmer Resistors - SMD 4mm SQ 1M |
Data Sheet |
|
|
||||||||||||||
