Product Summary
The BLM15AG601SN1D is a on-board type(DC) EMI suppression filter. It generates a high impedance which at high frequencies mainly consists of a resistance element. The BLM15AG601SN1D is effective in circuits without stable groud lines because the device does not need a connection to ground.
Parametrics
BLM15AG601SN1D specifications: (1)Impedance(at 100MHz/20℃)(ohm): 600±25%; (2)Rated Current (mA): 300; (4)DC Resistance(max.)(ohm): 0.6; (5)Operating temperature range(℃): -55 to +125.
Features
BLM15AG601SN1D features: (1)It can be used in digital interface; (2)Resistance of it especially grows in the lower frequency range. Therefore it is less effective for digital signal waveform at low frequency range and can suppress the ringing; (3)It generates an impedance from the relatively low frequencies. Therefore it is effective in noise suppression in the wide frequency range(30MHz-several hundred MHz).

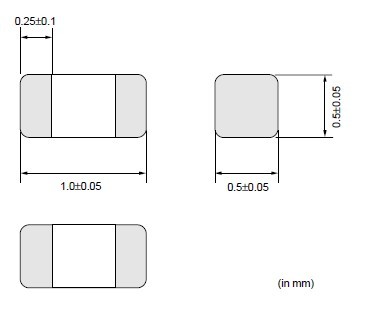

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLM15AG601SN1D |
Murata |
EMI Filter Beads, Chokes & Arrays 600 OHM LOW SPEED SI |
Data Sheet |
|
|
||||||||||||
