Product Summary
The BSS138 is a n–channel power MOSFET. Its typical applications are dc–dc converters, power management in portable and battery–powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
Parametrics
Maximum ratings: (1)Drain–to–Source Voltage. VDSS: 50 Vdc; (2)Gate–to–Source Voltage – Continuous, VGS: ± 20 Vdc; (3)Drain Current: – Continuous @ TA = 25°C, ID: 200mA; – Pulsed Drain Current (tp 3 10 ms): IDM: 800 mA; (4)Total Power Dissipation @ TA = 25°C, PD: 225 mW; (5)Operating and Storage Temperature Range, TJ, Tstg: – 55 to 150℃ ; (6)Thermal Resistance – Junction–to–Ambient, RqJA: 556℃ /W; (7)Maximum Lead Temperature for Soldering Purposes, for 10 seconds, TL: 260℃.
Features

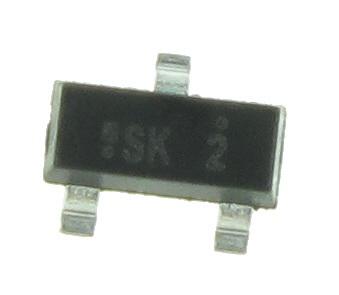

Features: (1)Low Threshold Voltage (VGS(th): 0.5V to 1.5V) makes it ideal for low voltage applications; (2)Miniature SOT–23 Surface Mount Package saves board space.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BSS138 |
![]() Fairchild Semiconductor |
![]() MOSFET SOT-23 N-CH LOGIC |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BSS138\E9 |
![]() Vishay Semiconductors |
![]() MOSFET USE 781-VN0605T |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BSS138_D87Z |
![]() Fairchild Semiconductor |
![]() MOSFET N-Ch Log Lvl Enhance Mode Field Effect |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BSS138_L99Z |
![]() Fairchild Semiconductor |
![]() MOSFET |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BSS138_Q |
![]() Fairchild Semiconductor |
![]() MOSFET SOT-23 N-CH LOGIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BSS138-7 |
![]() Diodes Inc. |
![]() MOSFET 60V 360mW |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BSS138-7-F |
![]() Diodes Inc. |
![]() MOSFET 300mW 50V DSS |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BSS138BK,215 |
![]() NXP Semiconductors |
![]() MOSFET N-CH 60 V 360 mA |
![]() Data Sheet |
![]()
|
|
