Product Summary

The NCP21XV103J03 is a 10K thermistor of 0805 SMD package. The 0805 sized chip NTC thermistor has Ni barrier termination and provide excellent solderability and offer high stability in environment by unique inner construction.

Parametrics

Absolute maximum ratings: (1)Resistance (25℃)(ohm): 10k±5%; (2)B-Constant (25-50℃) (K): 3900±3% ; (3)B-Constant (25-80℃) (Reference Value) (K): 3930; (4)B-Constant (25-85℃) (Reference Value) (K): 3934; (5)B-Constant (25-100℃) (Reference Value) (K): 3944; (6)Permissive Operating Current (25℃) (mA): 0.44; (7)Rated Electric Power (25℃) (mW): 200; (8)Typical Dissipation Constant (25℃) (mW/℃): 2.

Features

Features: (1)Excellent solderability and high stability in environment; (2)Excellent long time aging stability; (3)High accuracy in resistance and B-constant; (4)Flow / Reflow soldering possible; (5)Same B-Constant in the same resistance in the three sizes (0805 size / 0603 size / 0402 size) ; (6)Easy to use smaller size in the circuits; (7)Lead is not contained in the product.; (8)NCP series are recognized by UL.

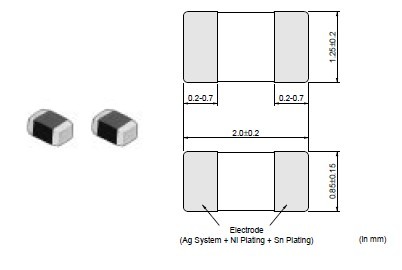

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NCP21XV103J03RA
NCP21XV103J03RA
Murata
Thermistors - NTC 10K OHM 5%
Data Sheet
0-1: $0.34
1-50: $0.21
50-100: $0.17
100-500: $0.11
