Product Summary
The MINISMDC020F-2 is a polyswitch PTC device. As a overcurrent protection device, it has a wide application in many kind of circuits.
Parametrics
Electrical Characteristics: (1)Vmax (V) = 30V; (2)Imax (A) = 10A; (3)IH (Room Temperature) (A) = 0.2A; (4)IT (Room Temperature) (A) = 0.40A; (5)Rmin (Ω) = 0.60Ω; (6)R1 Max [Post Trip] (Ω) = 3.30Ω.
Features
Features: (1)UL File Number: E74889 ; (2)CSA File Number: CA78165; (3)Construction: Surface Mount; (4)Family Name: miniSMD ; (5)Form Factor (inches): 1812; (6)Form Factor (mm): 4532 ; (7)RoHS/ELV Compliance: RoHS compliant, ELV compliant; (8)Lead Free Solder Processes: Reflow solder capable to 245℃, Reflow solder capable to 260℃; (9)RoHS/ELV Compliance History: Always was RoHS compliant; (10)TUV Certificate No: R72041438; (11)Operating Temperature (Max.)(℃): 85℃; (12)Application: Surface Mount; (13)Packaging Method: Tape & Reel; (14)Brand: Raychem.

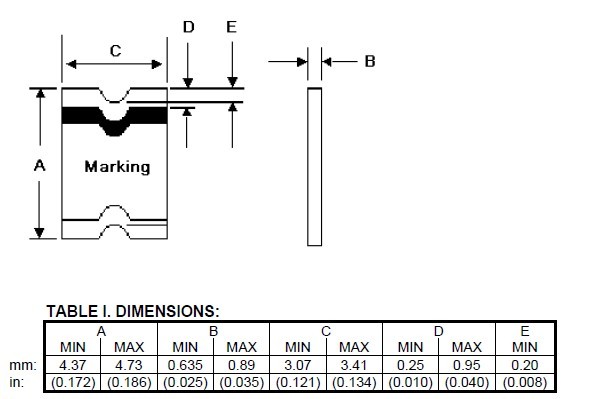

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 miniSMDC020F-2 |
TE Connectivity / Raychem |
PTC Resettable Fuses .2A 30V 10A Imax |
Data Sheet |
|
|
||||||||||||||||||||||
