LQG15HN22NJ02D

chip inductor, SMD, 300mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.03 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.03

PartNumber:: LQG15HN22NJ02D

Brand:: Murata Manufacturing Co., Ltd. - MURATA | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ke's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-05

From Other Seller

Part Number:LQG15HN22NJ02D
US $0.01 - 0.03
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LQG15HN22NJ02D is composed of chip inductors specifically designed for high frequency applications. The LQG15HN22NJ02D is designed to realize stable characteristics in high frequency range applying integrated multilayer process. The integrated multilayer process enables a wide range of inductance values with tight tolerance. The applications of the LQG15HN22NJ02D include: (1)High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc.; (2)Mobile phones such as GSM, CDMA, PDC, etc.; (3)"Bluetooth"; (4)W-LAN; (5)High frequency circuits in general.

Parametrics

LQG15HN22NJ02D specifications: (1)Inductance: 22nH±5%; (2)Test frequency: 100MHz; (3)Rated current: 300mA; (4)Max. of DC resistance: 0.58ohm; (5)Q(min): 8; (6)Test frequency: 100MHZ; (7)Self resonance frequency(min.): 1800MHz.

Features

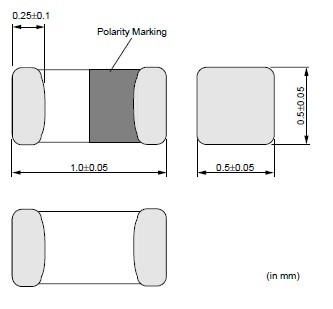

LQG15HN22NJ02D features: (1)High-Q, stable inductance in high frequency is achieved by the original structure that minimizes stray capacitance. It is suitable for the high frequency circuits of mobile communication equipment.; (2)The small size of LQG15H (1.0x0.5x0.5mm) is suitable for small and low profile mobile equipment.; (3)The external electrodes with nickel barrier structure provide excellent solder heat resistance.; (4)Wide variation in inductance value: 1-10nH (E24 step); 10-120nH (E12 step).
