The LQW15AN27NG00D is a chip inductor (chip coil) for high frequency horizontal wire wound.
Parametrics
LQW15AN27NG00D maximum ratings: (1)Vendor: Murata Electronics North America; (2)Category: Inductors, Coils, Chokes ; (3)Inductance: 27nH; (4)Tolerance: ±2%; (5)Package / Case: 0402 (1005 Metric); (6)Packaging: Tape & Reel (TR); (7)Type: Air Core; (8)Current: 280mA; (9)Mounting Type: Surface Mount ; (10)Q @ Freq: 25 @ 250MHz; (11)Frequency - Self Resonant: 3.5GHz; (12)DC Resistance (DCR): 520 mOhm Max; (13)Applications: High Frequency; (14)Lead Free Status: Lead Free; (15)RoHS Status: RoHS Compliant.
Features
LQW15AN27NG00D features: (1)Inductance: 27 nH; (2)Tolerance: 2 %; (3)Maximum DC Current: 280 mAmps; (4)Maximum DC Resistance: 0.52 Ohms; (5)Self Resonant Frequency: 3.5 GHz; (6)Q Minimum: 25; (7)Operating Temperature Range: - 55 to + 125 ℃; (8)Termination Style: SMD/SMT; (9)Package / Case: 0402 (1005 metric); (10)Dimensions: 0.5 mm W x 1 mm L x 0.5 mm H; (11)Packaging: Reel; (12)Standard Pack Qty: 10000.

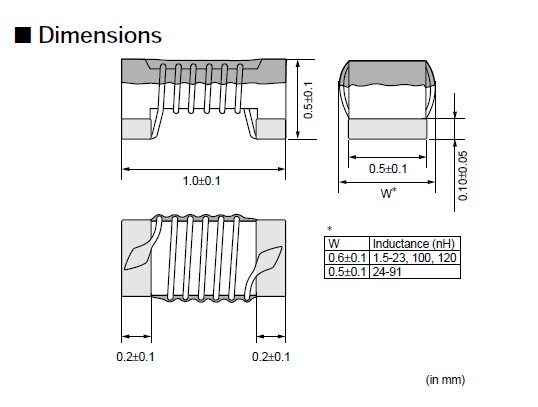

Diagrams
