Product Summary

The LQW15AN39NH00D is a 3GHz RF inductor.

Parametrics

LQW15AN39NH00D maximum ratings: (1)Vendor: Murata Electronics North America; (2)Category: Inductors, Coils, Chokes ; (3)Inductance: 39nH; (4)Tolerance: ±3%; (5)Package / Case: 0402 (1005 Metric); (6)Packaging: Tape & Reel (TR); (7)Type: Air Core; (8)Current: 250mA; (9)Mounting Type: Surface Mount ; (10)Q @ Freq: 25 @ 250MHz; (11)Frequency Self Resonant: 3GHz; (12)DC Resistance (DCR): 700 mOhm Max; (13)Applications: High Frequency; (14)Lead Free Status: Lead Free; (15)RoHS Status: RoHS Compliant.

Features

LQW15AN39NH00D features: (1)Product Category: RF Inductors; (2)RoHS: Details; (3)Inductance: 39 nH; (4)Tolerance: 3 %; (5)Termination Style: SMD/SMT; (6)Package / Case: 0402 (1005 metric); (7)Dimensions: 0.5 mm W x 1 mm L x 0.5 mm H; (8)Packaging: Reel; (9)Standard Pack Qty: 10000.

Diagrams

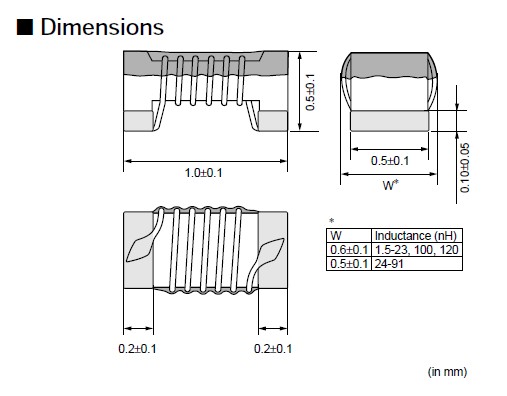

LQW15AN39NH00D Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN39NH00D
LQW15AN39NH00D
Murata
RF Inductors 39 NH 3%
Data Sheet
0-1: $0.17
1-100: $0.14
100-500: $0.11
500-1000: $0.09
