Product Summary
The LQW15AN47NH00D is a chip coil from Murata Manufacturing Co., Ltd. The chip coil LQH/LQN series consists of miniature chip inductors wound on a special ferrite core and are made possible by an automatic winding technique developed by Murata. These inductors have a high Q at high frequencies and low DC resistance, making them very well suited to enhancing the performance of electronic circuits in video, communications, and audio equipment.
Parametrics
LQW15AN47NH00D maximum ratings: (1)Maximum DC Current: 210 mAmps; (2)Maximum DC Resistance: 1.08 Ohms; (3)Self Resonant Frequency: 2.9 GHz; (4)Q Minimum: 25; (5)Operating Temperature Range: - 55 C to + 125 C; (6)Termination Style: SMD/SMT; (7)Package / Case: 0402 (1005 metric); (8)Dimensions: 0.5 mm W x 1 mm L x 0.5 mm H.
Features
LQW15AN47NH00D features: (1)There are three different inductor types: the LQH1N,LQH3N and LQH(N)4N series. These three series cover a wide inductance range (from 0.1mH to 2.2mH); (2)The series has outstanding frequency characteristics and a high Q value at high frequencies; (3)The low DC resistance permits high current flow; (4)The series has excellent solder heat resistance. Both flow and reflow soldering methods can be employed.

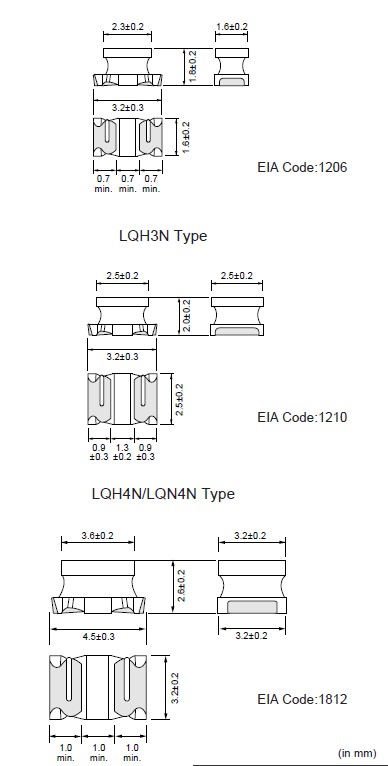

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQW15AN47NH00D |
Murata |
RF Inductors 0402 47nH +/-3% DCR 1.08ohm |
Data Sheet |
|
|
||||||||||||
