Product Summary

The NR3015T100M is a SMD inductor low profile type. It is designed for small DC/DC converter(cellular Phone, HDD,DVC, DSC, PDA, LCD display etc).

Parametrics

NR3015T100M specifications: (1)EHS(Environmental Hazardous Substances): RoHS; (2)Inductance[μH]: 10; (3)Inductance Tolerance: ±20%; (4)Self-resonant frequency[MHz](min): 28; (5)Resistance[Ω](±20%): 0.230; (6)Saturation current Idc1: 700; Saturation current Idc2: 710; (7)Measuring frequency[kHz]: 100.

Features

NR3015T100M features: (1)Small and Low profile inductor; (2)It corresponds to High current; (3)Simple and original magnetic shield structure; (4)Structure strong against a shock-proof.

Diagrams

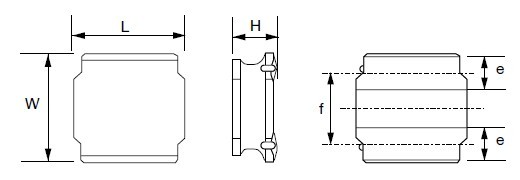

NR3015T100M external dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NR3015T100M
NR3015T100M
Taiyo Yuden
Power Inductors INDCTR LW PROFL WND 10uH 20%
Data Sheet
0-1: $0.20
1-10: $0.19
10-50: $0.18
50-100: $0.17
