Product Summary

The TZC3R100A110R is a ceramic trimmer capacitor. Applications include: Compact radios, Headphone stereos, Pagers, Portable radio equipments, Hybrid ICs, Cellular telephones, Cordless telephones, Remote keyless entry systems.

Parametrics

TZC3R100A110R specifications: (1)Cmin.(pF): 3.0 max.; (2)Cmax.(pF): 10.0 +50/-0%; (3)TC: N750±300ppm/℃; (4)Q: 500min. at 1MHz, Cmax.; (5)Rated Voltage: 100Vdc; (6)Withstanding Voltage: 220Vdc ; (7)Stator/Case Color: White.

Features

TZC3R100A110R features: (1)Color coded stator permits easy identification of capacitance and reduces mounting errors; (2)Can be adjusted with conventional adjustment tools having a thickness of 0.5mm; (3)Available for cross slot type to provide better adjustability; (4)Providing mechanism to prevent air leak offers better mountability with automatic mounter (Cross slot type); (5)Designed for automatic placement in surface mount applications.

Diagrams

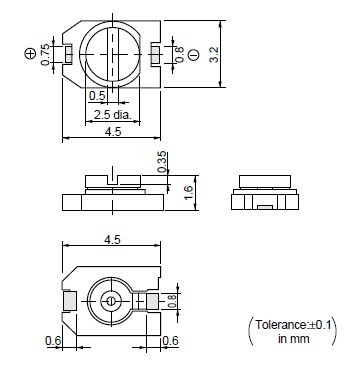

TZC3R100A110R dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TZC3R100A110R00
TZC3R100A110R00
Murata
Trimmer / Variable Capacitors 3.0 - 10PF 100V N750
Data Sheet
0-1: $0.72
1-50: $0.51
50-100: $0.44
100-500: $0.36
500-1000: $0.21
