3314J-1-104E

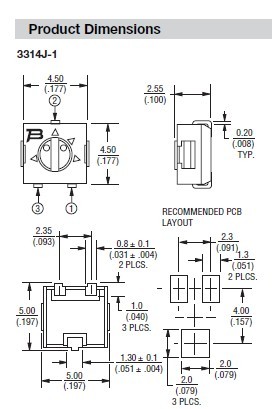

3314-4 mm, square trimming potentiometer, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.23~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.23~0.30

PartNumber:: 3314J-1-104E

Brand:: Bourns Electronic Solutions - Bourns | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ke's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-29

From Other Seller

Part Number:3314J-1-104E
US $0.23 - 0.30
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 3314J-1-104E belongs to the 3314J-1 series. It is a 3314-4 mm square trimming potentiometer. It has some features such as surface mount/single turn/cermets industrial/sealed, compatible with surface mount manufacturing processes, as well as J-hook, gull-wing and pinned configurations.

Parametrics

Absolute maximum ratings:(1): standard resistance range is from 10 ohms to 2 megohms; (2): resistance tolerance is ±20 % std; (3): contact resistance variation is 3 % or 3 ohms; (4): insulation resistance is 500 vdc at the minimum 100 megohms; (5): dielectric strength including sea level which is 500 vac (1 minute) and adjustment angle which is 210 °nom; (6): end resistance is 1 % or 2 ohms; (7): the maximum power rating is 300 V at 70 ℃; (8): temperature range is from -55℃ to 125℃; (9): temperature coefficient is ±100pmm/℃; (10): thermal shock is 5 cycles.

Features

Features:(1) surface mount/single turn/cermet industrial/sealed; (2) compatible with surface mount manufacturing processes; (3) compatible with popular vacuum pick-and-place equipment; (4): J-hook,gull-wing and pinned configurations; (5): side adjust available; (6): meets EIA/EIAJ/IPC/VECI SMD standard trimmer designs; (7): RoHS compliant-see processing information on lead free surface mount trimmers.
