Product Summary

The BLM18BG601SN1B is a on-board type (DC) EMI suppression filter for noise suppression in high speed signal lines and DC power lines. It generateds a high impedance which at high frequencies mainly consists of a resistance element. The BLM18BG601SN1B is effective in circuits without stable groud lines because the device does not need a connection to groud.

Features

BLM18BG601SN1B features: (1)It can be used in digital interface; (2)Resistance of BLM-R series especially grows in the lower frequency range. Therefore it is less effective for digital signal waveform at low frequency range and can suppress the ringing.

Diagrams

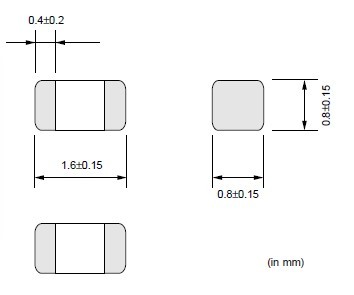

BLM18BG601SN1B dimensions
