The C1812C223KDRAC is a high voltage surface mount capacitor. It is designed to withstand high voltage applications. It offers high capacitance with low leakage current and low ESR at high frequency. The device has pure tin(Sn) plated external electrodes for good solderability. The applications of the C1812C223KDRAC include: (1)Switch Mode Power Supply: Input Filter, Resonators, Tank Circuit, Snubber Circuit, Output Filter; (2)High Voltage Coupling; (3)High Voltage DC Blocking; (4)Lighting Ballast; (5)Voltage Multiplier Circuits; (6)Coupling Capacitor/CUK.
Parametrics
C1812C223KDRAC specifications: (1)Capacitance: C0G: 1 pF to 0.010 μF; X7R: 10 pf to 0.22 μF; 25℃, 1.0 ± 0.2 Vrms, 1 kHz (1 MHz for ≤ 1000 pF (C0G only); (2)DF: C0G: 0.1% Max; X7R: 2.5% Max; (3)Voltage Ratings: 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 3000 V; (4)Operating Temperature Range: From -55℃ to +125℃; (5)25℃ IR @ 500V: 100 GΩ or 1000 MΩ-μF, whichever is less; (6)125℃ IR @ 500V: 10 GΩ or 100 MΩ-μF, whichever is less; (7)-55℃ TCC: X7R: + 15%; +125℃ TCC: C0G: ± 30 ppm / ℃; (8)Dielectric Strength: ±50% of Rated Voltage for Rated Voltage <1000 V; 120% of Rated Voltage for Rated Voltage >=1000V; (9)Ripple Current: Consult KEMET Sales Representative.

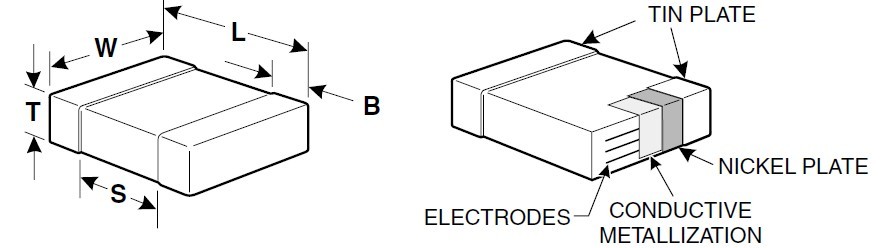

Diagrams
