Product Summary

The CIL21N47NMNE is an internal conductor, it has excellent Q characteristics and eliminate crosstalk. It can be used in resonance circuits, PLL circuits, Noise suppression etc.

Parametrics

CIL21N47NMNE specification: (1)Product Thickness(mm): 0.85±0.2; (2)Inductance(μH): 0.047±20%, 10%; (3)Q min: 15; (4)L, Q test frequency(MHZ): 50; (5)SRF(MHZ), min: 320; (6)DC resistance(Ω),max: 0.20; (7)Rated current(mA),max: 300.

Features

CIL21N47NMNE features: (1)Magnetic shielding eliminates crosstalk, thus permitting higher mounting densities; (2)Excellent solderability and high heat resistance for either flow or reflow soldering; (3)Monolithic structure for high reliability.

Diagrams

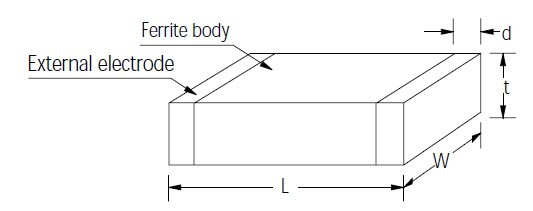

CIL21N47NMNE dimensions
